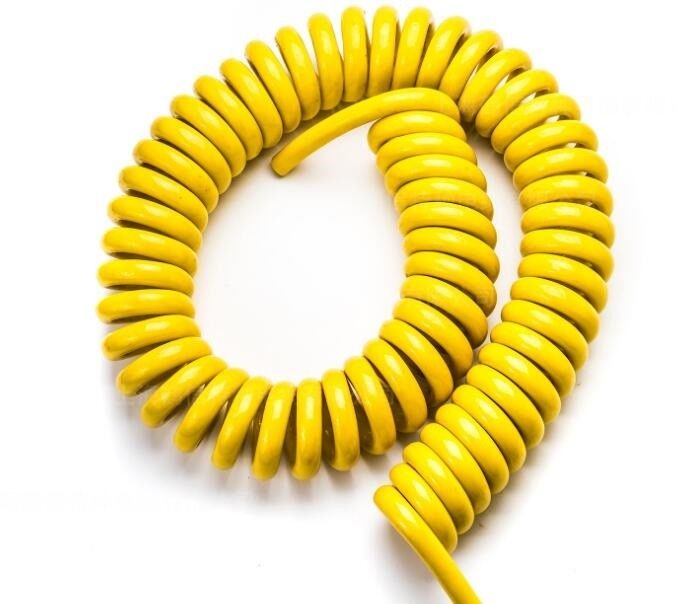

600V 나선형 전원 케이블

Spiral cable with outer PUR sheath ,shielded, UL&cUL Certificated, 80℃ 600V OR 1000V

Construction

Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Screened:construction with Cu-screening, tinned,approx. 80%

Jacket: PUR

Standards:International: STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5

RoHS,REACH Compliant,

Technical data
Rated voltage:600 V OR 1000V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 3.5kV/1min

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
